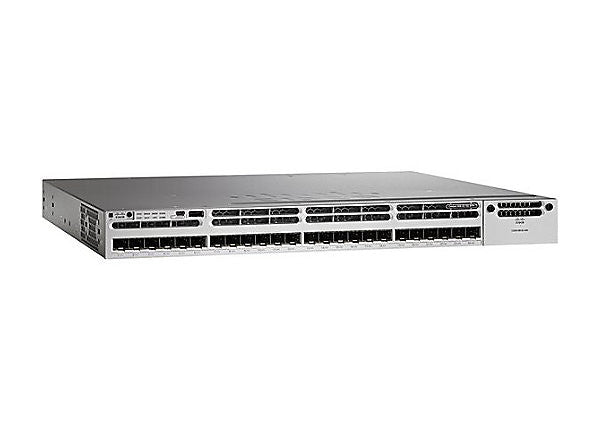

WS-C3850-24XS-S

$7,399.00 $21,000.00

Please email/call us today for your Networking/Server needs.

info@diversity-it.com - 800-212-1773

WS-C3850-24XS-S - New Factory Sealed

Overview

  • Subtype - 10 Gigabit Ethernet
  • Ports - 24 x 1 Gigabit / 10 Gigabit SFP+
  • Jumbo Frame Support - 9198 bytes
  • Authentication Method - Kerberos, RADIUS, Secure Shell (SSH), TACACS+
  • Flash Memory - 4 GB
  • MAC Address Table Size - 32000 entries
  • Authentication Method - Kerberos, Secure Shell (SSH), RADIUS, TACACS+
  • Status Indicators - Port transmission speed, port duplex mode, power, system, active, status
  • Routing Protocol - IS-IS, RIP-1, RIP-2, IGMPv2, IGMP, IGMPv3, policy-based routing (PBR), RIPng, MLDv2, MLD
  • Jumbo Frame Support - 9198 bytes
  • Manufacturer - Cisco

NETWORKING

  • MAC Address Table Size - 32000 entries
  • Subcategory - network hubs and switches
  • Subtype - 10 Gigabit Ethernet
  • Form Factor - desktop, rack-mountable
  • Type - switch
  • Stackable
  • Advanced Switching - Layer 3
  • Features:
    802.1x authentication, ARP inspection, Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Flexible NetFlow (FNF), Link Aggregation Control Protocol (LACP), Multiple Spanning Tree Protocol (MSTP) support, PIM snooping, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), ARP support, SSH support, Shaped Round Robin (SRR), Syslog support, Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), VLAN Trunking Protocol (VTP), Virtual Route Forwarding-Lite (VRF-Lite), Virtual Routing and Forwarding (VRF), Weighted Tail Drop (WTD), radio resource management (RRM), Access Control List (ACL) support, Bridge protocol data unit (BPDU), Cisco StackPower technology, Cisco StackWise-480 technology, Control plane protection (CoPP), DHCP snooping, DHCP support
  • Compliant Standards - IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3z
  • Jumbo Frame Support - 9198 bytes
  • Ports Qty - 24 SFP
  • Manageable - Yes
  • Routing Protocol - IGMP, IGMPv2, IGMPv3, IS-IS, MLD, MLDv2, RIP-1, RIP-2, RIPng, policy-based routing (PBR)
  • Remote Management Protocol - CLI, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH, TFTP, Telnet

MEMORY

  • Installed Size - 4 GB

POWER DEVICE

  • Power Provided -715 Watt
  • Nominal Voltage - AC 120/230 V
  • Frequency Required - 50 - 60 Hz
  • Type - internal power supply

MISCELLANEOUS

  • MTBF - 307990 sec
  • Height (Rack Units) - 1U

INTERFACE PROVIDED

  • Qty - 24 SFP+
  • Comments - Management Port
  • Qty - 2 Switch Stacking Ports (Stackwise)

POWER

  • Power Device - Internal power supply
  • Power Redundancy - optional
  • Power Redundancy Scheme - 1+1 (with optional power supply)
  • Max Supported Qty - 2

ENVIRONMENTAL PARAMETERS

  • Min Storage Temperature - (-40 °F)
  • Max Storage Temperature - (158 °F)
  • Min Operating Temperature - (23 °F)
  • Max Operating Temperature - (113 °F)
  • Humidity Range Operating - 10 - 95% (non-condensing)

SOFTWARE

  • Type - Cisco IOS IP Base

PORTS

  • Type - 1 Gigabit / 10 Gigabit SFP+
  • Qty - 24 SFP+

EXPANSION SLOTS

  • Type - expansion slot
  • Total Qty - 1
  • Free Qty - 1

PERFORMANCE

  • Type - stacking bandwidth, switching capacity
  • Value - 480 Gbps, 640 Gbps

CAPACITY

  • Type - IPv4 routes, NetFlow entries, switched virtual interfaces (SVIs), virtual interfaces (VLANs)
  • Value - 1000, 24000, 4000, 48000

DIMENSIONS & WEIGHT

  • Width - 17.5 in
  • Depth - 17.7 in
  • Height - 1.8 in
  • Weight - 13.45 lbs

Note: Orders generally ship within 1 to 2 days. Orders could take up to a week to ship after placement.
